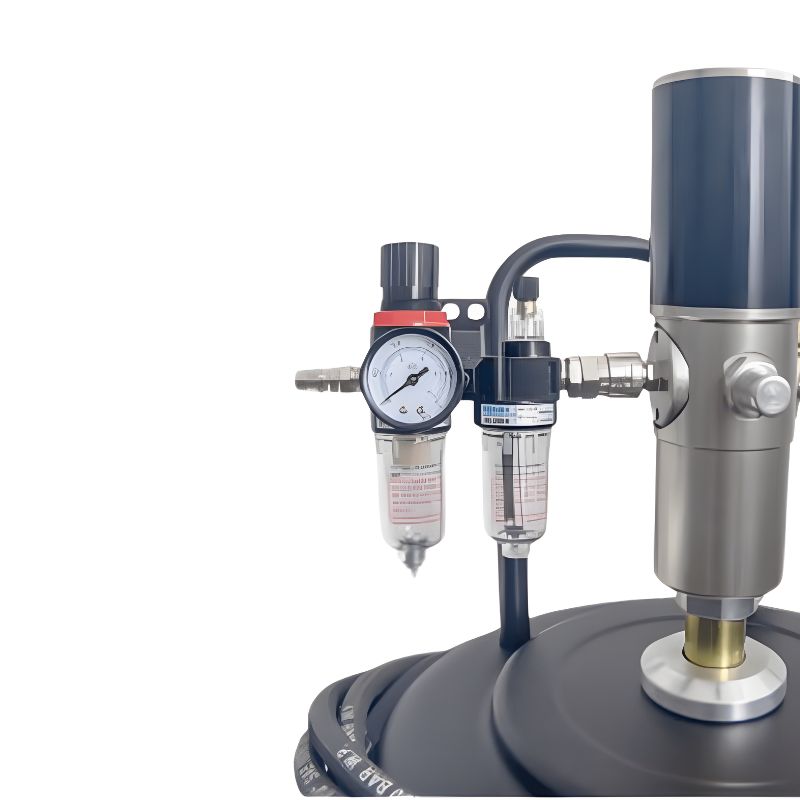

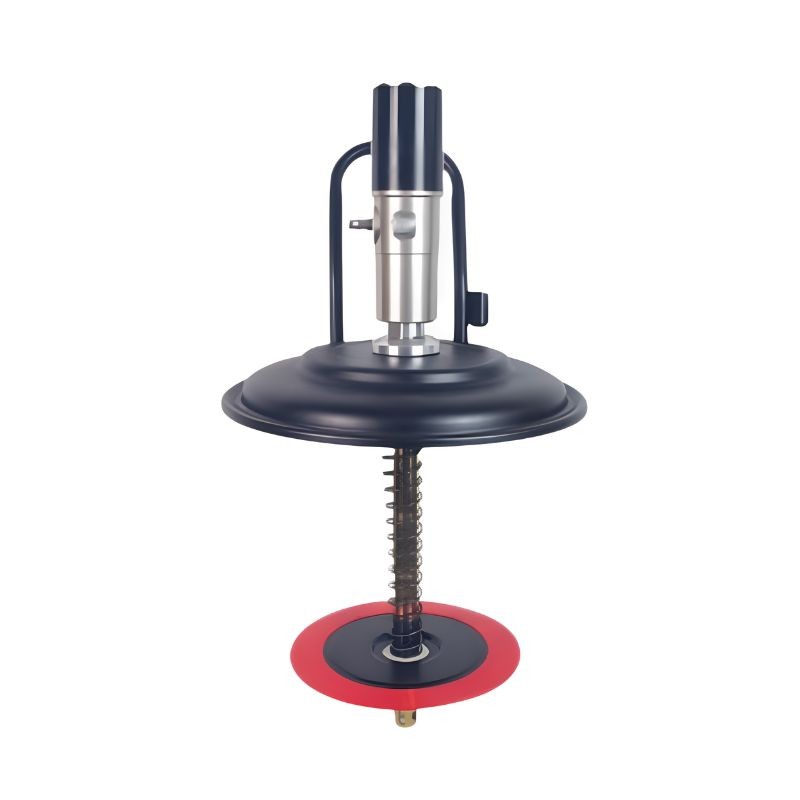

Air operated grease transfer pump

50:1 double-acting air-operated grease pumps are designed for transferring medium-high viscosity grease and high viscosity
oils at medium-high distances (medium-high pressures). Typical Application: The pump is primarily used as a high-pressure
grease dispenser, making it suitable for applications that require precise and controlled lubrication.
Pumps are available with a wide range of accessories and can be supplied as a complete pump kit for fixed and mobile
installations or for simply drum emptying, kits normally include a pump, hose and hose reel, discharge nozzle.

Price :

Description

Technical specification GP50-1 GP50-2 GP50-3 GP50-4
Item No.
Drum application 13kgs 20-30kgs 50-60kgs 180-220kgs
/ 30lbs / 44-66lbs / 110-132lbs / 400-484lbs
Pressure ratio 50:1 50:1 50:1 50:1
Air inlet pressure 5-8bar 5-8bar 5-8bar 5-8bar
/ 70-115psi / 70-115psi / 70-115psi / 70-115psi
Max. fluid pressure 400bar 400bar 400bar 400bar
/ 5800psi / 5800psi / 5800psi / 5800psi
Air motor effective 63mm/2-1/2″ 63mm/2-1/2″ 63mm/2-1/2″ 63mm/2-1/2″
diameter
Air consumption (min) @ 8 bar 120L @ 8 bar 120L @ 8 bar 120L @ 8 bar 120L
@ 115psi @ 115psi @ 115psi @ 115psi
/ 4.3CFM / 4.3CFM / 4.3CFM / 4.3CFM
Max.free flow rate (min) 800g 800g 800g 800g
/ 1.76lbs / 1.76lbs / 1.76lbs / 1.76lbs
Suction tube diameter 30mm 30mm 30mm 30mm
/ 1-3/16″ / 1-3/16″ / 1-3/16″ / 1-3/16″
Suction tube length 370mm/ 480mm/ 740mm/ 940mm/
14-1/2″ 19″ 29-1/8″ 37″
Air inlet connection 1/4″ quick plug 1/4″ quick plug 1/4″ quick plug 1/4″ quick plug
Oil outlet connection 1/4″ M 1/4″ M 1/4″ M 1/4″ M
Weight 5kgs / 11lbs 5.5kgs / 12lbs 5.5kgs / 12lbs 6kgs/12lbs
Packaging Dimension 13x13x73cm 13x13x81cm 13x13x108cm 13x13x128cm
/ 5.1″x5.1″x28.7″ / 5.1″x5.1″x31.8″ / 5.1″x5.1″x42.5″ / 5.1″x5.1″x50.3″
