Description
Model | OP1 | OP3 | OP5 |
---|---|---|---|
Pressure ratio | 1:1 | 3:1 | 5:1 |
Air inlet pressure | 5-8bar/70-115psi | ||
Max. fluid pressure | 8bar/115psi | 24bar/350psi | 40bar/580psi |
Air motor effective | 63mm/2.5″ | ||
diameter | |||
Air consumption (min) | @8bar 100L @115psi/3.6CFM | @8bar 110L @115psi/3.6CFM | @8bar 125L @115psi/4.5CFM |
Max. free flow rate | 18L/4.8gallon | 12L/3.2gallon | 8L/2.1gallon |
(min) | |||
Max. Viscosity | SAE80 | SAE130 | SAE240 |
Suction tube diameter | 42mm/1-5/8″ | ||
Air inlet connection | 1/4″quick plug | 1/4″quick plug | 1/4″NPT Female |
Oil outlet connection | 1/2″M | ||

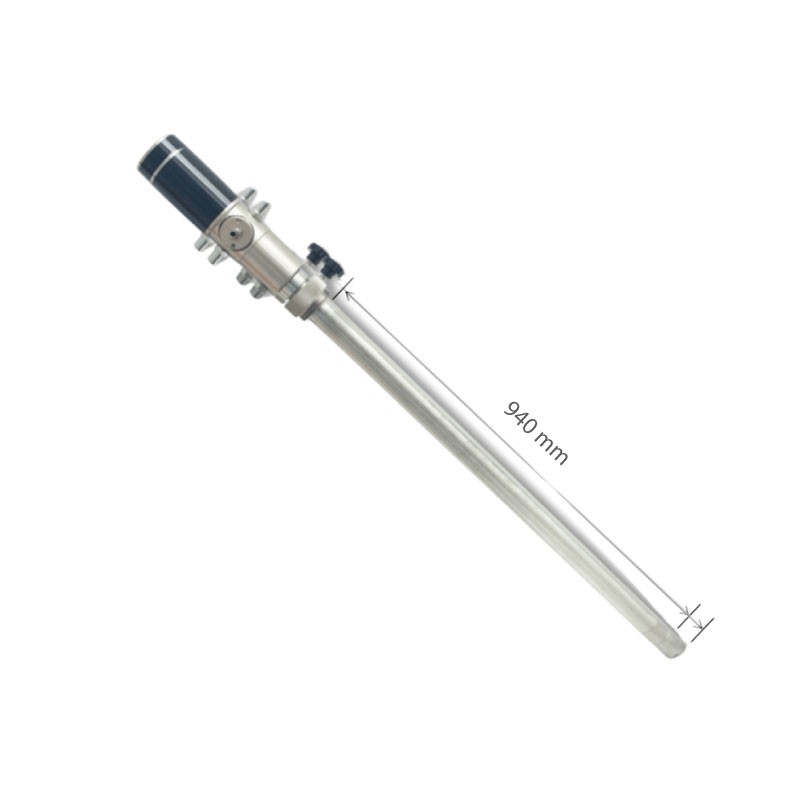

Suction tube length | □270mm/10-5/8″ | □730mm/28-3/4″ | □940mm/37″ |
Drum application | □Wall mounted 50-60L/13-16gallon | □180-220L/48-58gallon | |
Weight | □5kgs/11lbs | □5.5kgs/12lbs | □6kgs/13lbs |
Packaging Dimension | 13x13x73cm/5.1″x5.1″x28.7″ | 13x13x117cm/5.1″x5.1″x46.1″ | 13x13x137cm/5.1″x5.1″x53.9″ |
13x13x108cm/5.1″x5.1″x42.5″ | 13x13x128cm/5.1″x5.1″x50.4″ |
