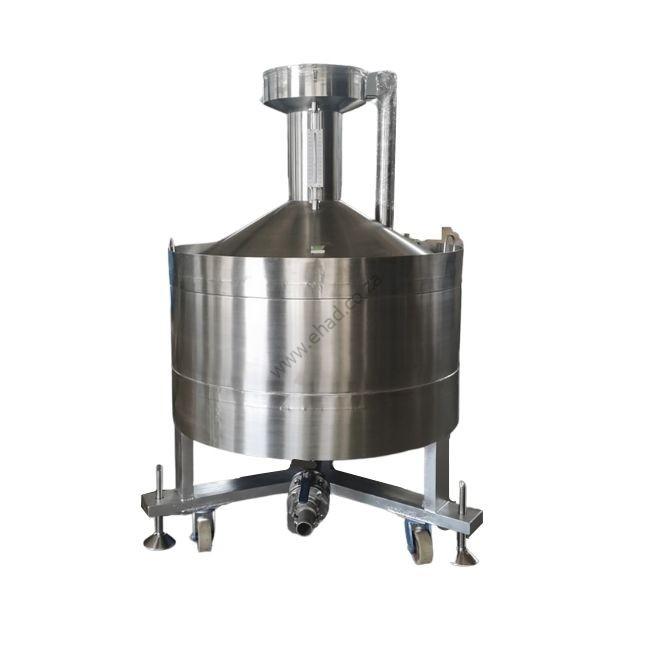

Stainless Steel Measuring Jug 200L

Calibrated Measures & Volumetric Provers.

Built to NIST Handbook 105-3 Standards, OIML R-120 and API Manual of Petroleum Measurement Chapter 4.



Manufactured of Series 304 Stainless Steel, which resists ordinary rusting, can be easily cleaned, resists organic chemicals, no slag and requires no internal coating. Series 316 stainless steel is available upon request.



Calibration by Standards Traceable to National Institute of Standards and Technology

Graduated Neck with scale that is sealed.



A butterfly valve is standard with the drain at the center point. This is the most versatile unit for use in the field whether emptying into tank, using a pump or gravity discharge. A ball valve is optional. It is used mostly in laboratory applications or where special application exists. The drain would then proceed at a 7-degree decline with the ball valve near the perimeter of the prover



Reinforcing bands to prevent distortion of prover when full of liquid and when being transported

Two spirit levels with seals are used as level indicators for provers more than 18” diameter, otherwise a circular bull- eye level is installed.



Two Lifting Loops are attached to top band of prover



Standard capacities are available from 5 Gallon/20 Liter to 1500 Gallon / 5000 Liter.



All Stainless-Steel Provers

Steel or Aluminum skid

Three Bolt down – Adjustable Crank Legs to level prover

Stainless Steel hinged locking cover for top of neck

Another cover is extended to protect the Gauge Glass from accidental breakage and can be secured with a lock for safety.

Sight flow indicator for ob- serving fluid flow down

Frequently asked questions on Calibration cans:

1. Is the EHAD calibration can pre-Calibrated?

YES, the EHAD Calibration can come with a factory calibration certification.

2. Can the EHAD Calibration Can, be Certified for the use of a Calibration officer under SANAS Law?

YES the EHAD calibration can be certified by a Metrology laboratory (SANAS
APPROVED) and registered in the Calibration officer company name or user’s name.
This is done at an additional cost.

3. Can I purchase a spare glass for the measuring cans from EHAD?

Yes, EHAD holds stock of measuring can Glass due to any breakages or accidents.

Price :R44,500.00 Excl VAT

Quantity :


Payments Secured by:

Global Delivery by:



SKU: 12321123-2-2 Category:

Description

Specifications:

Condition: new Dimension
Use: Oil station Color silvery
Brand Name: AISTAR Feature Test measure
Certification ISO9001/CE Tile Type 304,316 stainless steel
Material thickness

First class: 0.005%

Second class: 0.025%

Third class:   0.05%-0.1%

Raw material Stainless steel
Type TEST MEASURE Model Number S/A-MJ



Additional information

Weight 50 kg
Dimensions 80 × 80 × 135 cm

How it works

The EHAD office will prepare your product for shipment. Our courier of choice is TRITON EXPRESS. There are currently three available options for the delivery of your product:

  • 1. TRITON EXPRESS couriers will deliver your product to the TRITON depot nearest to your indicated address*.
  • 2. You can contact TRITON EXPRESS to arrange a COD for the delivery of your product from the TRITON depot directly to your indicated address*.
  • 3. You can arrange your own transportation of your product directly from the EHAD office at 32 Jarvis Road, Berea, East London.

*Please note that the courier price indicated on the website is taken from the EHAD office to the TRITON depot nearest to your selected address. TRITON EXPRESS can be contacted on 043 736 1385.

Should you require additional information on your invoice, please contact us directly. Credit applications are available upon request.



Deliveries Outside Of South Africa


For quotes on deliveries outside of South Africa (Exports) Please contact us on +27 43 721 0222 or info@ehad.co.za
