Description
| Aluminium Vapor Recovery Valve | |
| Certification： | ISO9001 |
| Condition: | Vapor recovery adapter |
| Size: | 4″ |
| Material: | Aluminium |
| Transport Package | Carton |

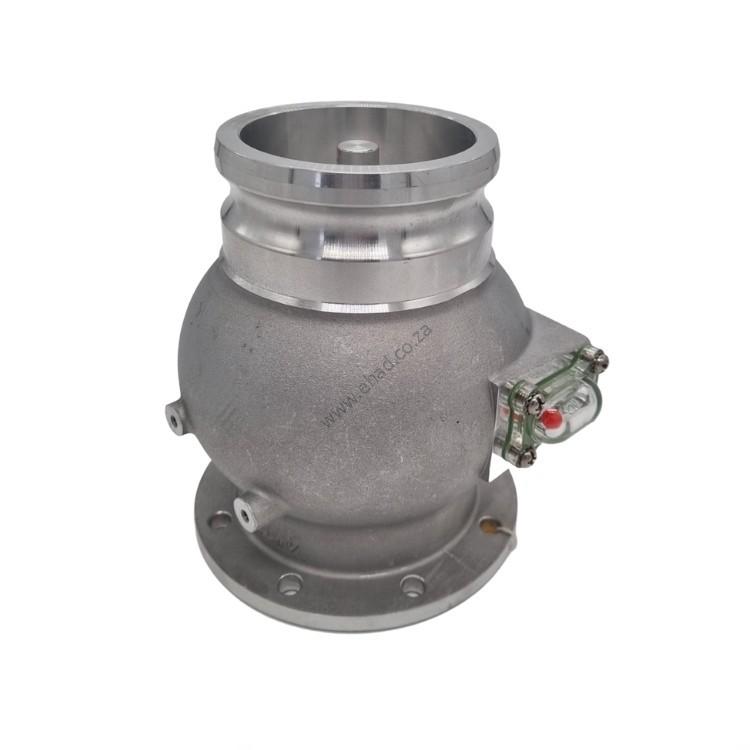

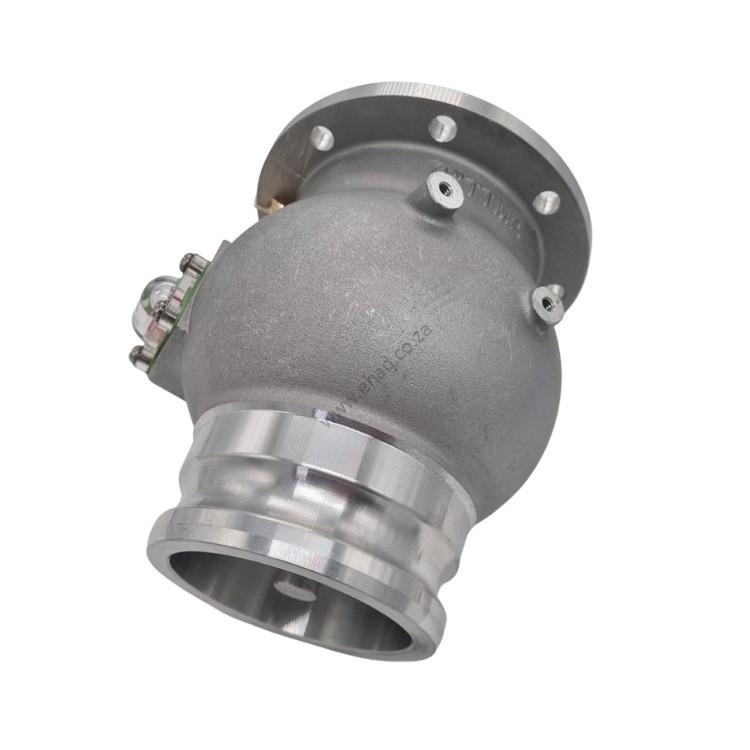

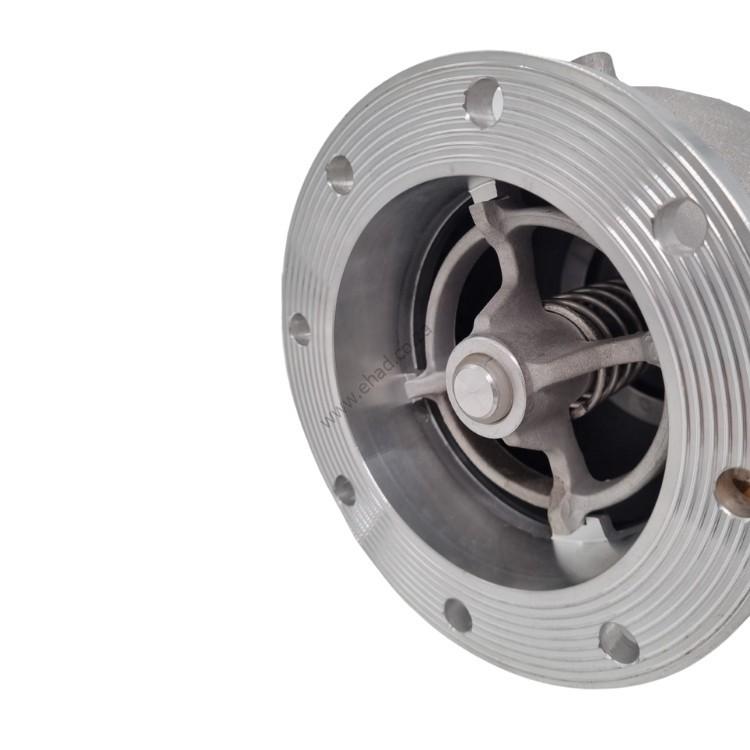

Vapor Recovery Tank Adapter
Nominal size : 4” or DIN100
Flange :4” TTMA
Working temp: -40ºC to +70ºC other temperatures on request
Product Description
Our Vapor Recovery Tank Adapter is designed to reduce oil leakage and recover steam generated during transportation to tanker trucks.
Our steam recovery adapters are designed to minimize pressure drop during tank loading and unloading and to maximize the recovery efficiency of petroleum vapor. They are internationally recognized as benchmarks.
Our steam recovery adapters have a lightweight aluminium structure that increases the payload and reduces maintenance. Multi-chamber loading and steam return can be performed at high flow rates without exceeding the P/V exhaust pressure rating.
When the fuel is delivered to the gas station, the steam recovery elbow is connected to the ground tank adapter. The steam adapter is threaded to the steam outlet connection of the surface storage tank.
Features
- Aluminium Vapor Recovery Valve have three styles, customers can choose according to their field
- 844A surface can be hard blackened, which increases the wear resistance of the product and greatly prolongs the service life of the product.
- Use with CVR400AL or CVR4030AL
- Vapor adapter poppeted with 4′ Cam&Groove and 3′ female NPT
Price :R2,950.00 Excl VAT
Additional information
| Weight | 20 kg |
|---|---|
| Dimensions | 20 × 20 × 5 cm |
| Size | 25mm /4m, 50mm/10m, 65mm/4m, 80mm/ 5m, 80mm/ 9.5, 100mm/4.5m, 100mm/6m |
