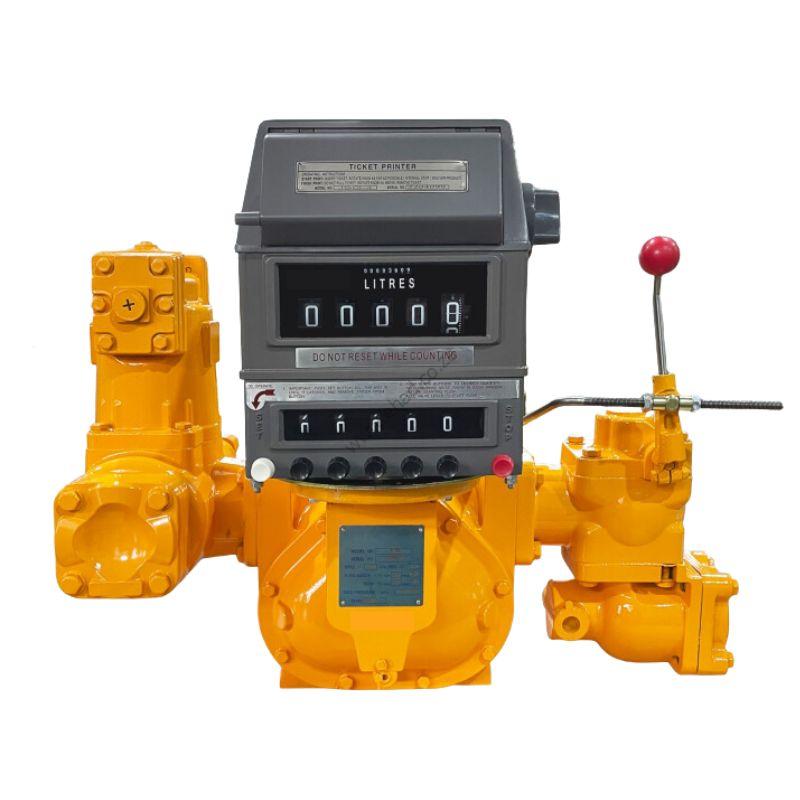

Preset Bulk Meter M80

The Ehad M Series Positive Displacement flow meter combines excellent accuracy with a low-pressure drop. Compared to traditional flow meters, it offers more sustainable accuracy, low wear, and the absence of metal-to-metal contact within the measuring chamber, resulting in maximum accuracy retention over time, fewer recalibrations, and a longer service life.

This meter is constructed with advanced materials to cover a broad range of measurement applications and comes with a full selection of accessories and electronic registration. The Ehad Depot Meters are designed to be robust and suitable for industrial or commercial use in demanding environments. Ehad Meters are available in various sizes, along with additional accessories.

Features:

High accuracy: ±0.2%
● Excellent repeatability ≤0.05
● Wide flow rate range: 115Lpm to 1150Lpm
● Wide viscosity range: from less than
● 30 SSU (less than 1 centipoise) to 1,500,000 SSU
(325,000 centipoise).

Applications:

● Petrol
● Paraffin
● Diesel






Manual


PRICE ON REQUEST



Price :

Description

Technical Specification

Model M-40 Series M-50 Series M-80 Series M-100 Series
Size 40mm/1.5″ 50mm/2″ 80mm/3″ 100mm/4″
Flow Range 25-250L/min 55-550 L/min 115-1150 L/min 170-1700L/min
Volume Per Revolution 0.309L 0.681L 1.839L 5.102L
Max Pressure 150 PSI (10.5 BAR) 150 PSI (10.5 BAR) 150 PSI (10.5 BAR) 150 PSI (10.5 BAR)
Accuracy ±0.2% ±0.2% ±0.2% ±0.2%
Repeatability <0.05% <0.05% <0.05% <0.05%
Standard Measurement Liter/ US Gallon/ IMP Gallon Liter/ US Gallon/ IMP Gallon Liter/ US Gallon/ IMP Gallon Liter/ US Gallon/ IMP Gallon
Package Wooden Case Carton Box; Wooden Case Wooden Case Wooden Case
Dimension* 60 X50X50 cm C:51X46X48cm; W:53X48X51cm 60x52X60cm 75X63X73cm
Gross Weight* 35kgs C:28kgs; W:38kgs 55kgs 97Kg

Additional information

Weight 40 kg
Dimensions 58 × 50 × 61 cm

How it works

The EHAD office will prepare your product for shipment. Our courier of choice is TRITON EXPRESS. There are currently three available options for the delivery of your product:

  • 1. TRITON EXPRESS couriers will deliver your product to the TRITON depot nearest to your indicated address*.
  • 2. You can contact TRITON EXPRESS to arrange a COD for the delivery of your product from the TRITON depot directly to your indicated address*.
  • 3. You can arrange your own transportation of your product directly from the EHAD office at 32 Jarvis Road, Berea, East London.

*Please note that the courier price indicated on the website is taken from the EHAD office to the TRITON depot nearest to your selected address. TRITON EXPRESS can be contacted on 043 736 1385.

Should you require additional information on your invoice, please contact us directly. Credit applications are available upon request.



Deliveries Outside Of South Africa


For quotes on deliveries outside of South Africa (Exports) Please contact us on +27 43 721 0222 or info@ehad.co.za
