Description
| Optional Fittings | Specification |
| Pump | 60L/min |
| Voltage | 220V |
| Flow Meter | Mechanical, Electronic (±0.5%，±1%) |
| Fuel Nozzle | Manual / Auto Shut-Off |
| Filter | Steel |

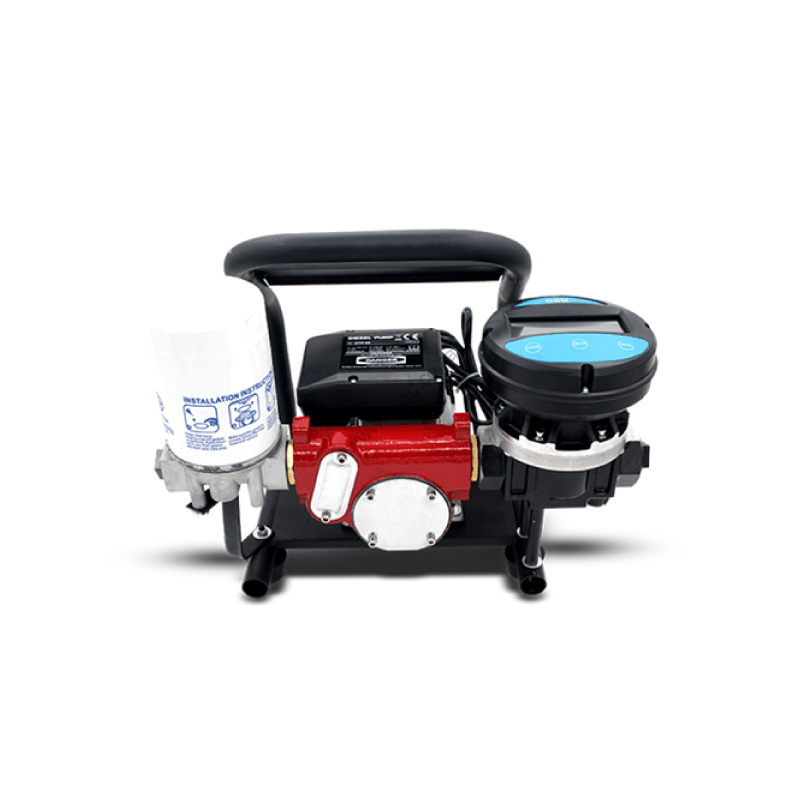

DYB- 80 Electric Transfer Pump
Technical Specifications
For fuelling diesel, Kerosene, not for gasoline
Mechanical seal that guarantees constant reliability, even in low temperatures.
Cast-iron pump casing, treated against corrosion and paint-finished.
Vane pump with steel rotor
Bypass valve built in.
In-built 100-micron filter, easily accessible for cleaning.
Induction motor with aluminium casing. Grade of protection: IP54.
30 Min Duty Cycle
| Model: | DYB60-AC220/110 | DYB70-AC220 | DYB80-AC220 | DYB40-DC12 |
| Flow Rate: | 20L-60L/min | 20L-70L/min | 20L-80L/min | 20L-40L/min |
| Max. Pressure: | 3 Bar | 3 Bar | 3 Bar | 3 Bar |
| Power: | AC220V±10% 50Hz AC110V±10% 60Hz |
AC220V±10% 50Hz | AC220V±10% 50Hz | DC12 DC24 |
| By pass Valve : | Yes | Yes | Yes | Yes |
| Strainer : | Yes | Yes | Yes | No |
| Inlet&outlet | 1″ | 1″ | 1″ | 3/4″ |
| Power: | 375W | 500W | 550W | 120W |
| Package: | 2pcs/carton | 2pcs/carton | 1pc/carton | 2pc/carton |
| Net Weight: | 15Kg | 16Kg | 12Kg | 7Kg |
| Gross Weight: | 17Kg | 17Kg | 13Kg | 8Kg |
| Dimension: | 490×300×220mm | 490×280×220mm | 290×220×250mm | 490×280×220mm |
