Description
Technical Parameters:
LIQUID: ADBLUE,CHEMICAL LIQUID,WATER,FUEL
INLET & OUTLET: 1”
ACCURACY: +-1%
REPEATABILITY: +-0.5%
MAX WORKING PRESSURE: 10BAR
WORKING VOLTAGE: 3v
STANDBY TIME: 2
FLOWRATE:10-120LPM
SINGLE ACCUMULATION: 0.00-9999.9
TOTAL ACCUMULATION:0.00-999999.9
UNIT:L or GAL or PTS or QTS
Manual to operation:
Second :

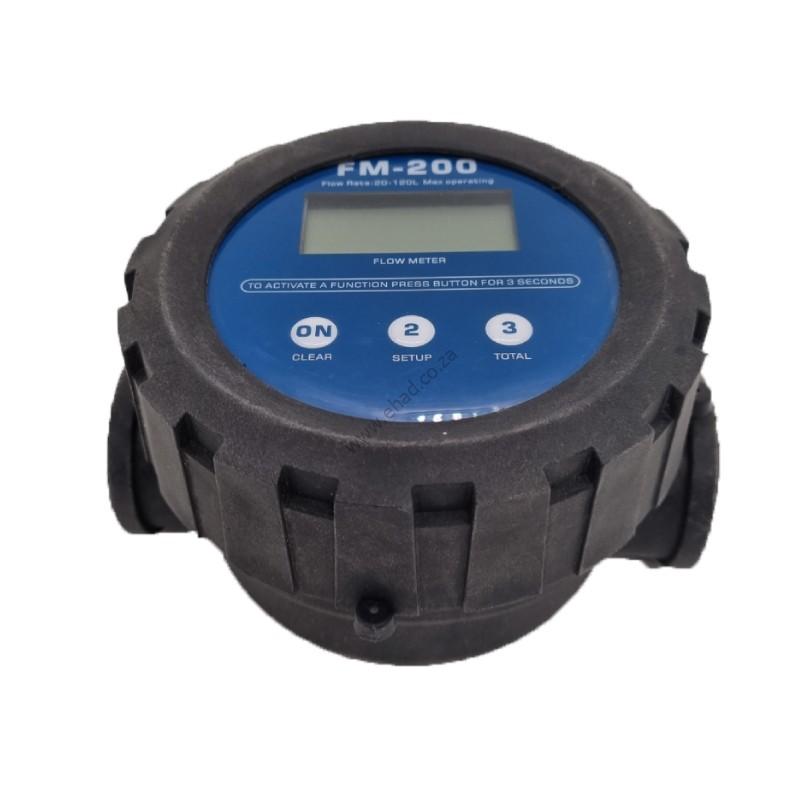

Key Description
1. left“CLEAR”key:Used to power on, clear single time accumulation;
2. middle“SETUP” key:Used to set the coefficient, set the unit, flow rate and shift display switch;
3. right“TOTAL”key:Used for total accumulation/class accumulation query, on-site calibration calibration;
Third :
Operation 1.
Start: Pressing the “SETUP” button.
2. The flow meter will closed without any operation within 8 minutes.
3. Clear Date: Press “CLEAR” butt on when the flow meter works, the current data can be deleted.
4. Check total: Press “TOTAL” button, on the second row of the screen will show the letter of “total” .the number under the “total” Letter is totalize. The totalize can not be reset.
5.Clear the partial Total: Press “TOTAL ” button 2 seconds, it will show the flash number, then press the “CLEAR” button to delete the partial total.
6. The machinery OGM flow meter has the total reset function. “Cal USEr”, The top row shows the current coefficient (The default coefficient is 1000),Flashing of the coefficient,press shortly“CLEAR”key is ‘add’,press shortly “TOTAL” is less,press shortly“SETUP”key displacement ,press long time“SETUP”is draw out and save seating ;
