Description
Model: | DYB60-AC220/110 | DYB70-AC220 | DYB80-AC220 | DYB40-DC12 |
Flow Rate: | 20L-60L/min | 20L-70L/min | 20L-80L/min | 20L-40L/min |
Max. Pressure: | 3 Bar | 3 Bar | 3 Bar | 3 Bar |
Power: | AC220V±10% 50Hz AC110V±10% 60Hz |
AC220V±10% 50Hz | AC220V±10% 50Hz | DC12 DC24 |
By pass Valve : | Yes | Yes | Yes | Yes |
Strainer : | Yes | Yes | Yes | No |
Inlet&outlet | 1″ | 1″ | 1″ | 3/4″ |
Power: | 375W | 500W | 550W | 120W |
Package: | 2pcs/carton | 2pcs/carton | 1pc/carton | 2pc/carton |
Net Weight: | 15Kg | 16Kg | 12Kg | 7Kg |
Gross Weight: | 17Kg | 17Kg | 13Kg | 8Kg |
Dimension: | 490×300×220mm | 490×280×220mm | 290×220×250mm | 490×280×220mm |
Optional Fittings | Specification |
Pump | 80L/min |
Voltage | 220V |

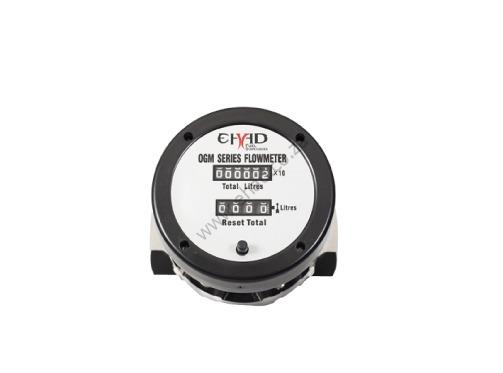

Flow Meter | Mechanical, Electronic (±0.5%) |
Fuel Nozzle | Auto Shut-Off |
Filter | Steel |
