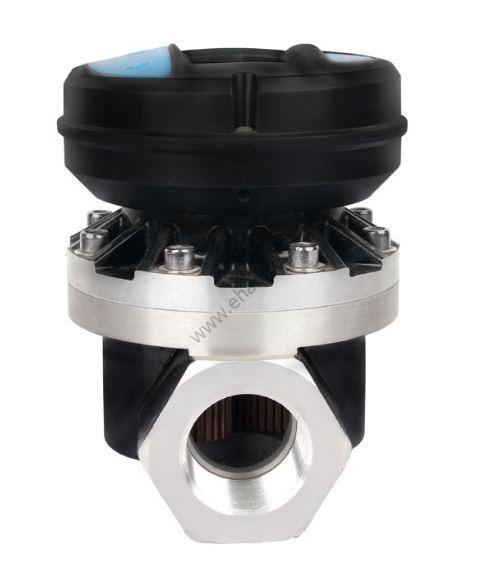

Oval Gear Flow Meter-25E

  • A kind of positive displacement flow meter with choice of mechanical display or digital LCD display
  • Designed to cover a brand range of industrial fluid measurement applications.
  • It is ideally suited to applications requiring accurate dispense quantities.

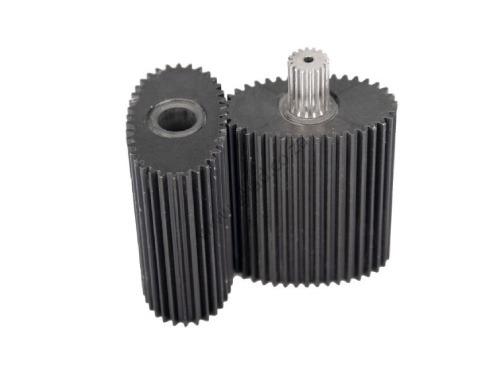

  • Easy to read, aluminium body, PPS rotors, light weight.
  • A line strainer must be used to protect the meter
  • OGM—A mechanical register flow meter with 4 digitals subtotals can be set to zero, 6 digital total readout cannot.

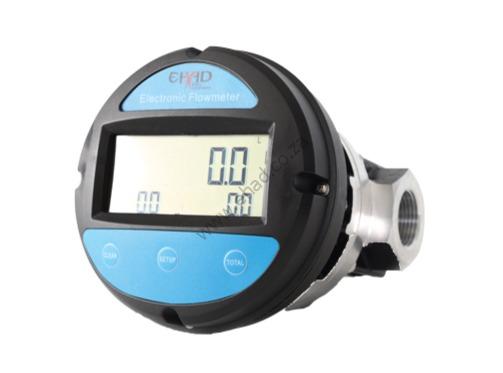

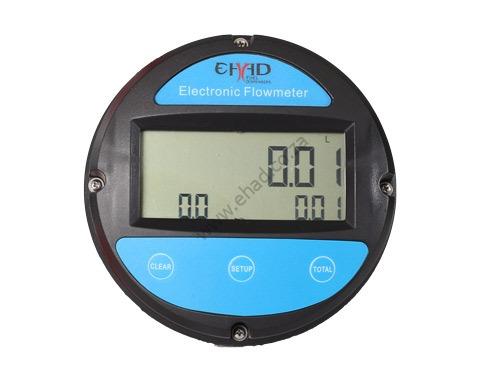

  • OGM—E digital flow meter with 5—digitaI sub—total, with floating point from 0.01 to 99999.99, 7—digitaI non—resettable tantalizer.

Price :R1,950.00 Excl VAT

Quantity :


Payments Secured by:

Global Delivery by:



SKU: 3 Categories: , Tags: ,

Description

TECHNICAL SPECIFICATION – ELECTRONIC OGM METER
ITEMS OGM-25E OGM-40E OGM-50E
SIZE 1” 1.5” 2”
FLOW RANGE 20-120LPM 25-250LPM 30-300LPM
MAX PRESSURE 3.4Mpa 1.8Mpa 1.8Mpa
ACCURACY +-0.5% +-0.5% +-0.5%
MAX VISCOSITY 1000CPS 1000CPS 1000CPS
REPEATABILITY 0.03% 0.03% 0.03%
ONE-TIME VOLUME 0-999999.99L 0-999999.99L 0-999999.99L
VALUE 0-9999999.99 0-9999999.99 0-9999999.99

Package Data：

Model OGM-A-25 OGM-A-40
 Dimension 40×23×31cm 49×28×22cm
 Net Weight 8kg 10kg
 Gross Weight 9kg 11kg
 Package 4pc/Carton 2pc/Carton

Advantage：

  • Compact,
  • easy maintenance
  • Easy to read and operate mechanical display
  • Horizontally and vertically flexibility of installation options
  • Low pressure drops







Additional information

Weight 2.6 kg
Dimensions 20 × 18 × 18 cm
