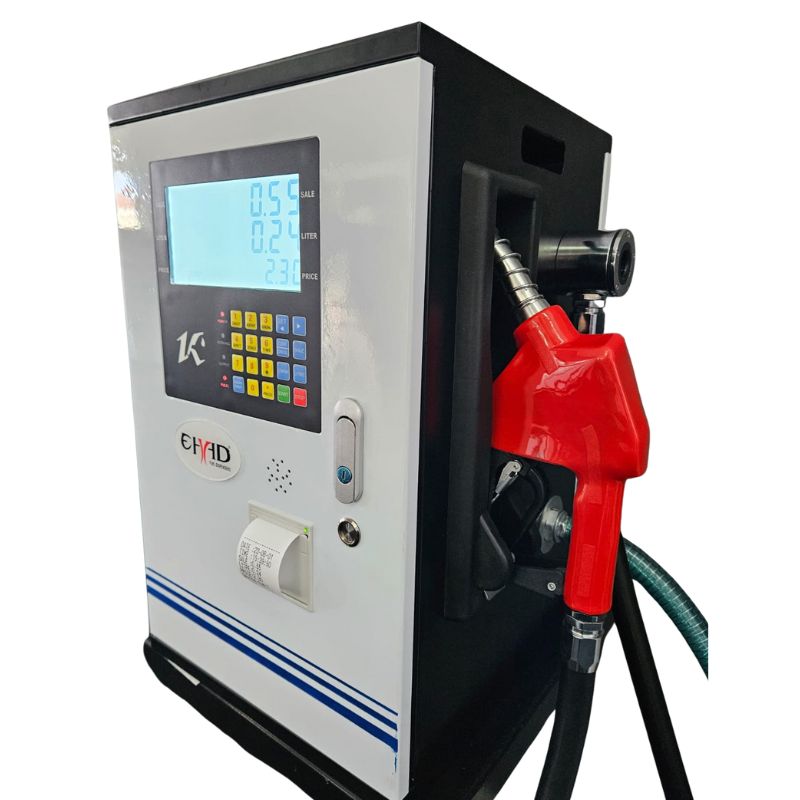

Cube 12v Transfer Pump Kit With Ticket Printer

Name: Cube 12v Transfer Pump Kit With Ticket Printer
SKU: 38-1-2
Price: 16500.00 ZAR
Availability: InStock

Cube 12v

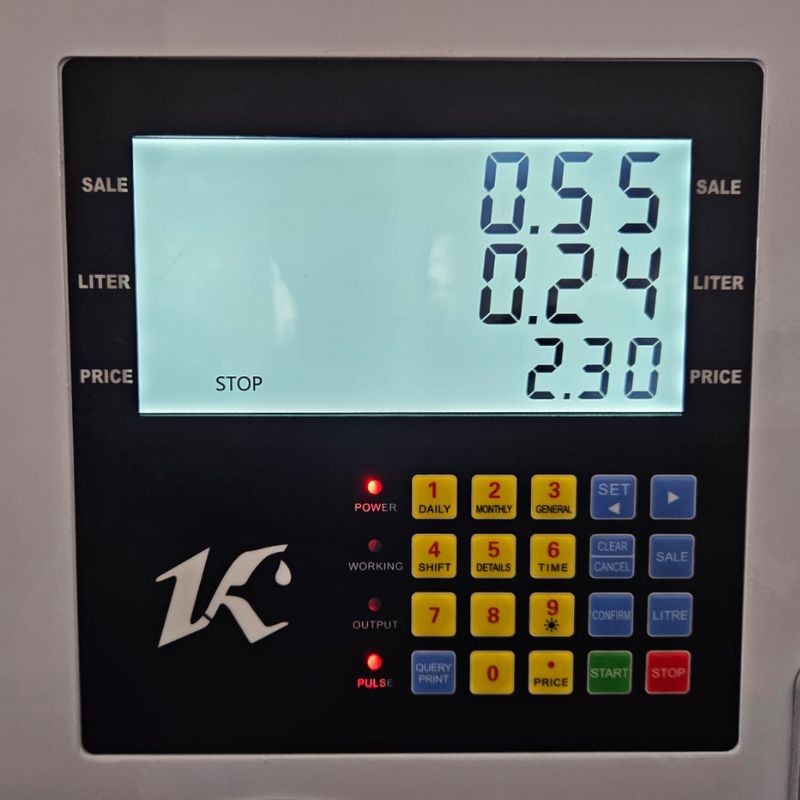

The Cube 12v Transfer Pump is a state-of-the-art fuel dispensing system that combines modern design with the latest technological advancements. It is known for its exceptional performance, dependable quality, and visually appealing design, making it an advanced metering equipment for vehicles. This pump is characterized by its high precision, ease of operation, and straightforward maintenance. It also boasts a wide range of functions, including controlled fuel dispensing, data monitoring, and accumulation of oil volume. The data management is handled by a minicomputer and is displayed on an LCD screen, capable of storing information for up to seven years. This makes the pump highly suitable for gas stations and is compatible with various light fuels including light diesel and kerosene.

The Cube 12v Transfer Pump is designed with an anti-explosion structure and has successfully passed several safety tests, obtaining certifications such as the Ex-proof Eligibility certificate, Meter model approval certificate, and Fuel dispenser manufacture license. This ensures its safe operation in diverse and challenging environmental conditions.

Features of the Cube 60:

Automatic Fuel or Litre Pre-sets
High accuracy Flow-meter 0.05%
Simple electronic Calibration capabilities
Stores 100 Transaction – MEMORY
Price indicator- Decimals can be changed
Simple and easy installation

EHAD Box pumps come with the Following INCLUDED:

4 Meter Rubber Hose
Automatic TD-Auto Nozzle ¾
Fittings
DYB70 12v Motor
Inlet Hose
OGM-Mechanical Meter 0.05% accuracy
Filter and housing
Ticket Printer

Price :R16,500.00 Excl VAT

SKU: 38-1-2 Categories: Box/ Kit Pumps, DC Pumps (12v/24v), Fuel Transfer Pumps Tag: Electronic Transfer pump

Description

No.	Technical Parameter	Specification
1	Environmental condition	Temperature: -40°C-+55°C, Humidity: 30%-90%, Air pressure: 86Kpa-106Kpa
2	Flow Range	20-80LPM
3	Accuracy	Calculation accuracy ±0.3%, Repeating error: ≤0.15%
4	Vacuum of input	>54Kpa
5	Pressure of output	≤0.3MPa
6	Suction Distance	Vertical: 6m, Horizontal: ≤20m
7	Power supply	DC12V, DC24V, AC110V, AC220V, AC380V
8	Noise	80 dB(A noise grade)
9	Unit price range	0.001-999999
10	Single counting range	0.001-999999.00
11	Accumulative counting range	0.1-9999999999.99
12	Working life	>1.5*10^6L
13	Anti-explosion signal	Exdm[ib]ibll AT3

Additional information

Weight	30 kg
Dimensions	73 × 50 × 45 cm
